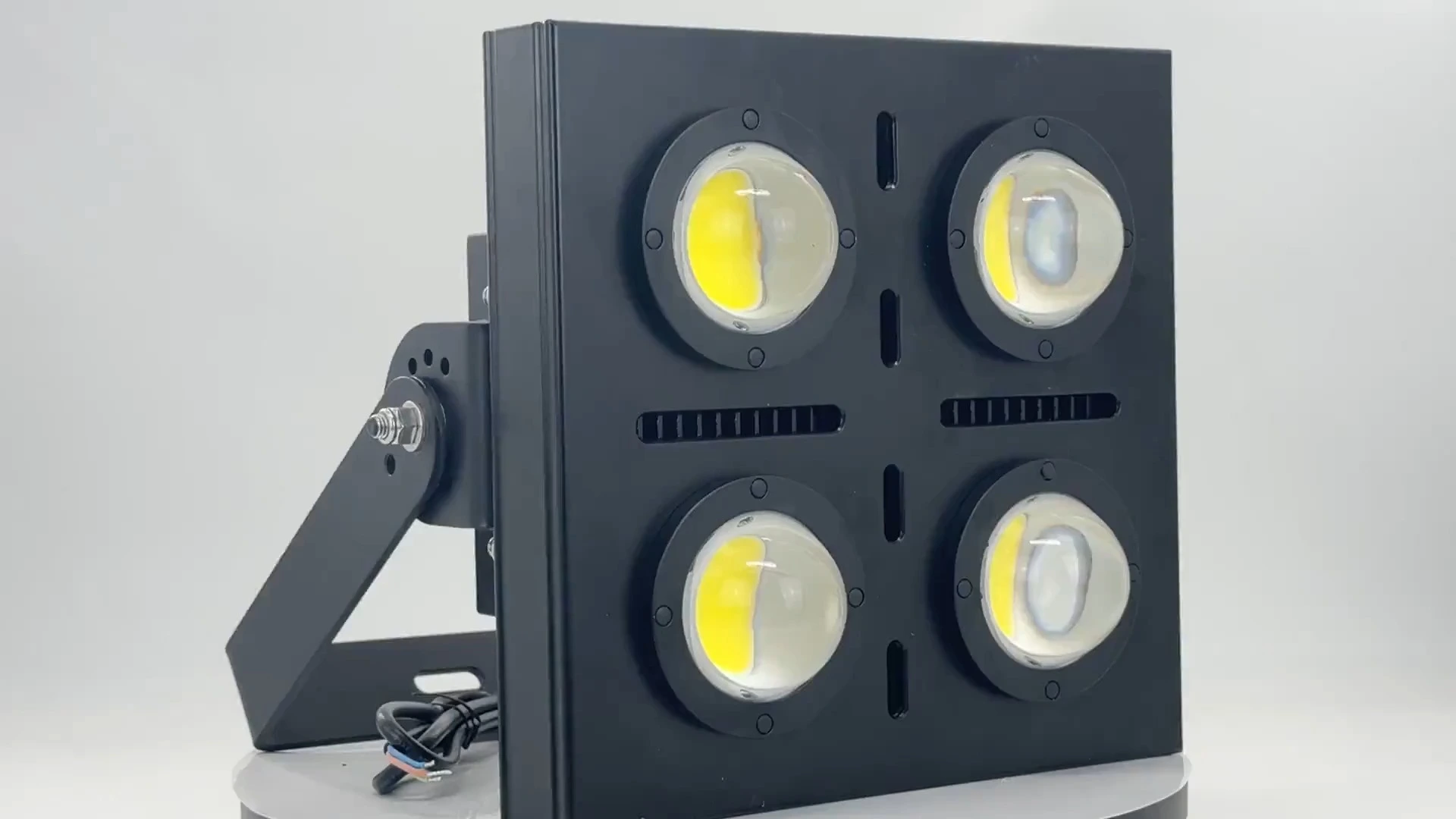

COB LED FloodLights JR 312
- MODEL: JR312
- POWER: 160W 300W 350W 400W 500W
- Input Volt.: AC100-277V DC24V DC48V
- Light effect: 130/150Lm/W
- Beam Angle: 30° 45° 60° 90°
- Color temperature: 3000-5700K
- LED TYPE: SMD5050
- CERTIFICATION: CE/ROHS/IP66/IK09/ISO9001/ISO14001
Our Advantage
● Fashional & modern design,the lamp main structural parts are aluminum.,Surface electrostatic spraying treatment,with anti-impact,anti corrosion and anti shock functions.
● Adopting hollow laser processing for the lamp main body to enhance the air mobility without accumulating dust,accelerate the light fixture cooling effect,and effectively reduce the wind resistance when light is working in the high altitude,improve the light fixture usage security.
●The light fixture main heat dissipation parts is made of ultra-high heat transfer aluminum, with high efficient thermal conductitivity,heat dissipation performance, effectively reducing the LED Chip temperature and ensuring the service life of the LED Light.
● High-intensity optical lens, with better light transmittance.
● Highly reliable seal structure design, adopting imported anti-aging silicone rubber for sealing ring,IP67 protection rating.
● Using imported high quality LED light source,low luminous depreciation,high luminous efficiency,stable and durable.
● High strength steel bracket,can be a wide range of adjustable light bracket angle.
● Suitable used for factory, industrial place, sports field, gas stations, parking lots, station hall, railway stations, ports, docks and mobile light tower etc.
Product Details
Product Parameters
| Model | Power(W) | Light Efficiency | Voltage(V) | CRI(Ra) | Beam Angle | CCT(K) | Ta | Power Factor | N.W/G.W (KG) | Packing size (mm) | ||
| JR312-160W | 160 | 150Lm/W | AC100-277V DC48V |
≥70 | 30° 45° 60° 90° |
3000~5700 | -40℃~50℃ | ＞0.95 | 6.5/7 | 400×315×230 | ||
| JR312-300W | 300 | 150Lm/W | 9.6/10.1 | 400×400×230 | ||||||||
| JR312-350W | 350 | 150Lm/W | 9.6/10.1 | 400×400×230 | ||||||||
| JR312-400W | 400 | 140Lm/W | 9.6/10.1 | 400×400×230 | ||||||||
| JR312-500W | 500 | 130Lm/W | 11/11.5 | 400×545×230 | ||||||||
| Note: Letter "W" in the model no. stands for AC voltage; "DT" stands for DC24V; "DF" stands for DC48V. | ||||||||||||
Product Size
| Size/Model | a | b | c |
| JR312-160W | 370 | 280 | 175 |
| JR312-300W | 370 | 363 | 175 |
| JR312-350W | 370 | 363 | 175 |
| JR312-400W | 370 | 363 | 175 |
| JR312-500W | 370 | 510 | 175 |
