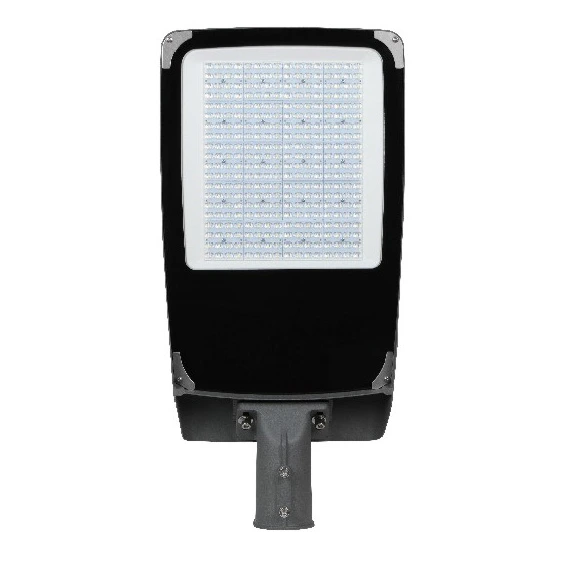

LED Solar Light Street LED Lamps SL02
● lndependent research and development, simple European design style LED streetlight, with very cost effective solution.
● Large arc assembly line side modeling, less wind resistance, small size and large wattage, smaller wind resistance coefficient integrated diecasting, strong vibration resistance and typhoon resistance .
● 90% aluminum isinvolved in heat dissipation, the effective area is significantly increased, and it can reachlP65 waterproof level.
● The light source cavity and the power supply cavity are designed in the same cavity, which is more convenientto maintain the light source cavity and the power supply cavity.
● There are NEMA and ZHAGAinterfaces on the top,which can add radar motion sensor and photocell control system.
● The arm of the lamp holder can be adjusted up and down by 15 degrees, and it can be installed vertically at 90 degrees,which adaptto avariety of light poles and angle needs.
Our Advantage
● The main heat dissipation components of the luminaire are ultra-high heat conduction aluminum materials, with black oxidation treatment on the surface, with high-efficiency heat conduction, high heat dissipation performance, effectively reducing the temperature of LED chips, ensuring the service life of the LED.
● Variety of lens options can meet the light distribution requirements of different application environments. Optical grade PC material lens has uniform light output and no glare.
● High strength 5mm thick steel bracket, 360 ° adjustable lamp projection angle, fixed with high strength locknut.
● The lens screws are fixed in a special way, which is super shock proof. It can meet the high shock proof environmental requirements such as mobile light tower etc.
● The guide rail type chute is designed to ensure the lamp body will not fall off even if the screw is loose under vibration.
● Global wide voltage operation, conform to various general standards, easy to replace directly.
● Durable, long service life, up to 50000 hours, no need to change lamps frequently.
● Suitable used for industrial place, stadium, parking lots, ports, docks, mobile light tower, mines, coal plants, etc.
Product Parameters
| Model | Power(W) | Light Efficiency | Voltage(V) | CRI(Ra) | Power Factor | CCT(K) | EnvironmentTemperature |
| SL02-30W | 30 | 120-150Lm/W | AC100-277V DC24V |
＞70 | ＞0.95 | 3000~6000 | -40℃~50℃ |
| SL02-40W | 40 | ||||||
| SL02-50W | 50 | ||||||
| SL02-60W | 60 | ||||||
| SL02-80W | 80 | ||||||
| SL02-100W | 100 | ||||||
| SL02-120W | 120 | ||||||
| SL02-150W | 150 | ||||||
| SL02-200W | 200 | ||||||
| SL02-240W | 240 |
Product Size
| Size/Model | a | b | c |
| SL02-30W | 481 | 260 | 120 |
| SL02-40W | 481 | 260 | 120 |
| SL02-50W | 481 | 260 | 120 |
| SL02-60W | 481 | 260 | 120 |
| SL02-80W | 481 | 260 | 120 |
| SL02-100W | 495 | 263 | 199.5 |
| SL02-120W | 495 | 263 | 199.5 |
| SL02-150W | 495 | 263 | 199.5 |
| SL02-200W | 640 | 315 | 127 |
| SL02-240W | 640 | 315 | 127 |
