Brand Outdoor Lighting Supplier
Company Advantages
· The production of outdoor lighting is strictly controlled and inspected before going into the next stage.
· Products have passed a number of quality standards testing, and in the performance, life and other aspects of the certification.
· Shanghai Jing Rui Lighting Co., Ltd. has its great staff to produce superior quality of outdoor lighting.
Our advantage

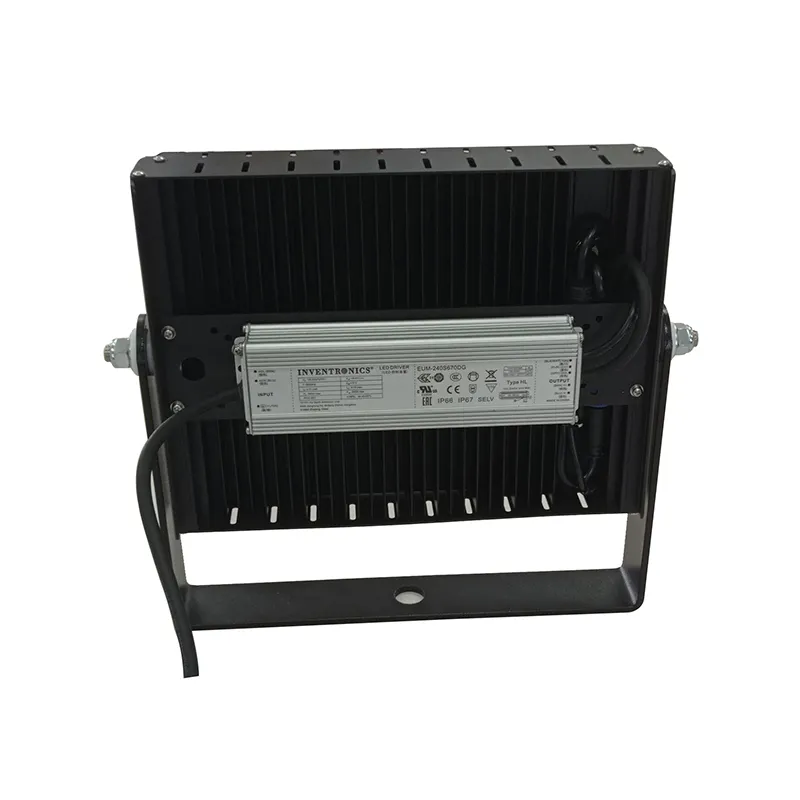

● The main heat dissipation components of the luminaire are ultra-high heat conduction aluminum materials, with black oxidation treatment on the surface, with high-efficiency heat conduction, high heat dissipation performance, effectively reducing the temperature of LED chips, ensuring the service life of the LED.

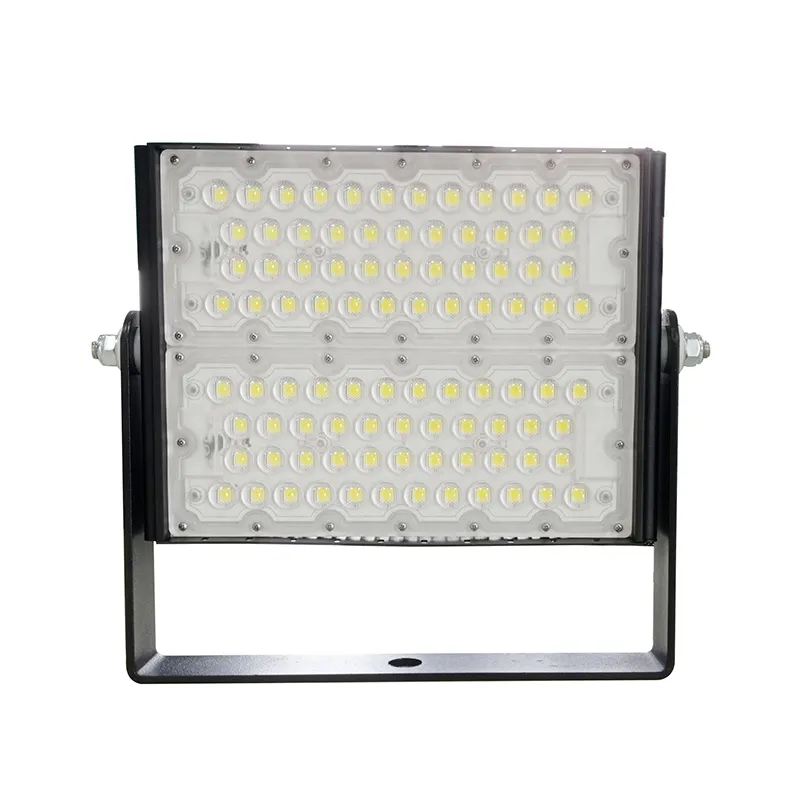

● Variety of lens options can meet the light distribution requirements of different application environments. Optical grade PC material lens has uniform light output and no glare.
● High strength 5mm thick steel bracket, 360 ° adjustable lamp projection angle, fixed with high strength locknut.
● The lens screws are fixed in a special way, which is super shock proof. It can meet the high shock proof environmental requirements such as mobile light tower etc.
● The guide rail type chute is designed to ensure the lamp body will not fall off even if the screw is loose under vibration.
● Global wide voltage operation, conform to various general standards, easy to replace directly.
● Durable, long service life, up to 50000 hours, no need to change lamps frequently.
● Suitable used for industrial place, stadium, parking lots, ports, docks, mobile light tower, mines, coal plants, etc.
Product details
Company Features
· As a leading domestic manufacturer of outdoor lighting, Shanghai Jing Rui Lighting Co., Ltd. is consistently improving and re-expanding in scale.
· In order to achieve technological innovation, we have introduced professional technicians and advanced equipment. As a strong technology company, our company continues to improve production efficiency. The internationally advanced development process and solid technical foundation have made Shanghai Jing Rui Lighting Co., Ltd. popular.
· Shanghai Jing Rui Lighting Co., Ltd. has been working closely with customers to develop solutions. Get price!
Product Details
Our outdoor lighting is exquisite in workmanship, and we are not afraid to enlarge the details of our products.
Product Comparison
The outdoor lighting of Jing Rui has the following advantages, compared with similar products in the market.
Product parameters
| Model | Power(W) | Module Qty | Light Efficiency | Voltage(V) | CRI(Ra) | Beam Angle | CCT(K) | Ta | Power Factor | N.W/G.W (KG) | Packing size (mm) | |
| JR302-100W | 100 | 1x46 | 150Lm/W | AC100-277V | ≥70 | 20° 40° 60° 90° |
3000~6000 | -40℃~50℃ | ＞0.95 | 4.3/5.3 | 255×170×465 | |
| JR302-200W | 200 | 2x46 | 150Lm/W | 6.3/7.4 | 395×190×480 | |||||||
| JR302-300W | 300 | 3x46 | 150Lm/W | 8.8/10 | 510×190×480 | |||||||
| JR302-200W | 200 | 2x64 | 170Lm/W | 7/8.2 | 395×190×480 | |||||||
| JR302-320W | 320 | 2x64 | 150Lm/W | 7.5/8.7 | 395×190×480 | |||||||
| JR302-400W | 400 | 3x64 | 150Lm/W | 9/10.2 | 510×190×480 | |||||||
| JR302-500W | 500 | 4x64 | 150Lm/W | 13.1/14.3 | 630×190×480 | |||||||
| Note: Letter "W" in the model no. stands for AC voltage; "DT" stands for DC24V; "DF" stands for DC48V. | ||||||||||||
Product size
| Size/Model | a | b | c |
| JR302-100W | 386 | 201 | 97 |
| JR302-200W | 386 | 318 | 111 |
| JR302-300W | 386 | 435 | 111 |
| JR302-320W | 386 | 318 | 111 |
| JR302-400W | 386 | 435 | 111 |
| JR302-500W | 386 | 554 | 111 |
Product photometrics
Application Scenarios
FAQ
