Our advantage

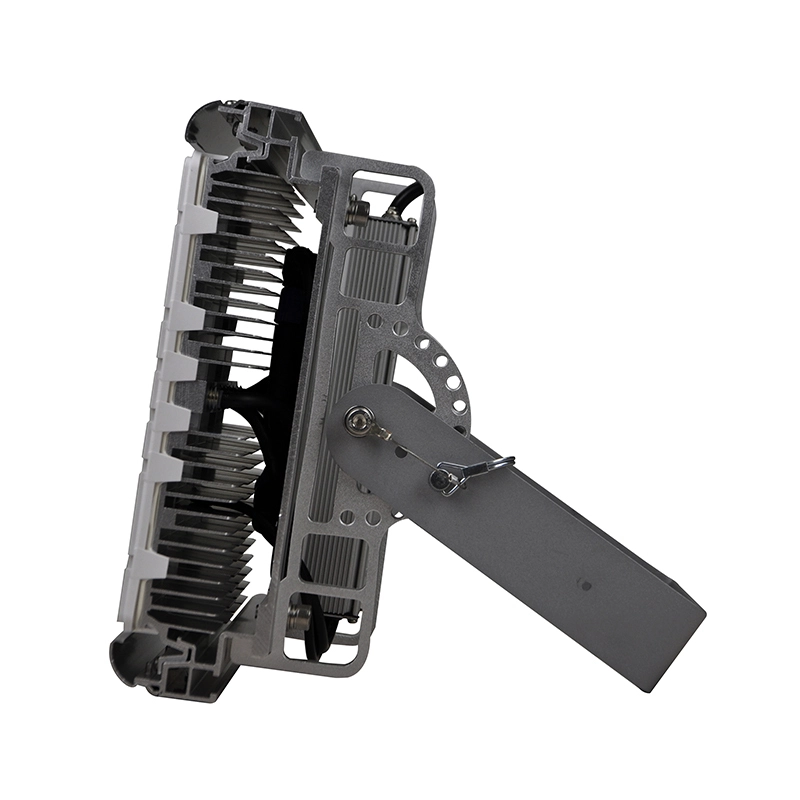

● Professional cooling structure technology, inside and outside air ducts design, high efficiency heat dissipation performance.
● IP67 protection level, LED module has IP68 protection level.
● A variety of lens options to meet different application requirements for light distribution, optical PC lens, uniform glare-free brightness.
● Freely assembled different numbers of modules for different power, highly adaptable functionality.
● All-metal structure, high mechanical strength.
● Suitable for factories, industrial sites, sports field, gas stations, parking lots, station halls, railway stations, ports installations and mobile light towers etc.
Product details
Company Advantages
· Standard production: exterior lighting manufacturers is produced in line with production standards. These standards are up to both domestic and international standards and contribute to the fine craftsmanship of this product.
· The product is durable and has a good performance, which has been approved by the international quality certificates.
· Shanghai Jing Rui Lighting Co., Ltd.'s service team is highly recognized by the customers.
Company Features
· For years of development, Shanghai Jing Rui Lighting Co., Ltd. has grown into a trustworthy manufacturer. We mainly provide innovative products such as exterior lighting manufacturers.
· Our company has world-class manufacturing facilities. By introducing cutting-edge production engineering and quality control technologies to instrument production, we ensure a quality level held in high esteem throughout the world.
· High-quality product with zero defect is the goal we pursue. We encourage employees especially the production team to carry out strict quality inspection, from the incoming materials to the final products.
Application of the Product
The exterior lighting manufacturers produced by our company is widely recognized by customers and widely used in field.
With a focus on customers' potential needs, Jing Rui has the ability to provide one-stop solutions.
Product parameters
Model | Power(W) | Module Qty | Light Efficiency | Voltage(V) | CRI(Ra) | Beam Angle | CCT(K) | Ta | Power Factor | N.W/G.W (KG) |
Packing size (mm) |
|
JR309-50W | 50 | 1 | 190Lm/W | AC100-277V DC24V DC48V |
≥70 | 25° 40° 60° 90° 110° |
3000~6000 | -40~50℃ | >0.95 | 2.7/3.2 | 395×210×200 | |
JR309-100W | 100 | 2 | 190Lm/W | 4.0/4.5 | 395×250×200 | |||||||
JR309-150W | 150 | 2 | 170Lm/W | 4.0/4.5 | 395×250×200 | |||||||
JR309-200W | 200 | 3 | 180Lm/W | 5.5/6.2 | 395×350×200 | |||||||
JR309-240W | 240 | 3 | 170Lm/W | 5.5/6.2 | 395×350×200 | |||||||
JR309-300W | 300 | 4 | 170Lm/W | 8.8/10.0 | 485×390×210 | |||||||
JR309-350W | 350 | 5 | 180Lm/W | 11.2/12.2 | 540×390×235 | |||||||
JR309-400W | 400 | 6 | 180Lm/W | 11.2/12.2 | 540×390×235 | |||||||
JR309-480W | 480 | 3 | 170Lm/W | 11.2/12.2 | 540×390×235 | |||||||
JR309-500W | 500 | 8 | 180Lm/W | 14.6/16.1 | 700×390×235 | |||||||
JR309-600W | 600 | 9 | 170Lm/W | 14.6/16.1 | 700×390×235 | |||||||
Note: Letter "W" in the model no. stands for AC voltage; "DT" stands for DC24V; "DF" stands for DC48V. |
Product size
Size/Model | a | b | c | d |
JR309-50W | 296 | 80 | 130 | 150 |
JR309-100W | 296 | 160 | 154 | 210 |
JR309-150W | 296 | 240 | 154 | 290 |
JR309-200W | 296 | 240 | 154 | 290 |
JR309-240W | 320 | 320 | 165 | 346 |
JR309-300W | 320 | 320 | 165 | 346 |
JR309-350W | 480 | 296 | 165 | 346 |
JR309-400W | 480 | 296 | 165 | 346 |
JR309-480W | 480 | 296 | 165 | 346 |
JR309-500W | 640 | 296 | 165 | 346 |
JR309-600W | 640 | 296 | 165 | 346 |
