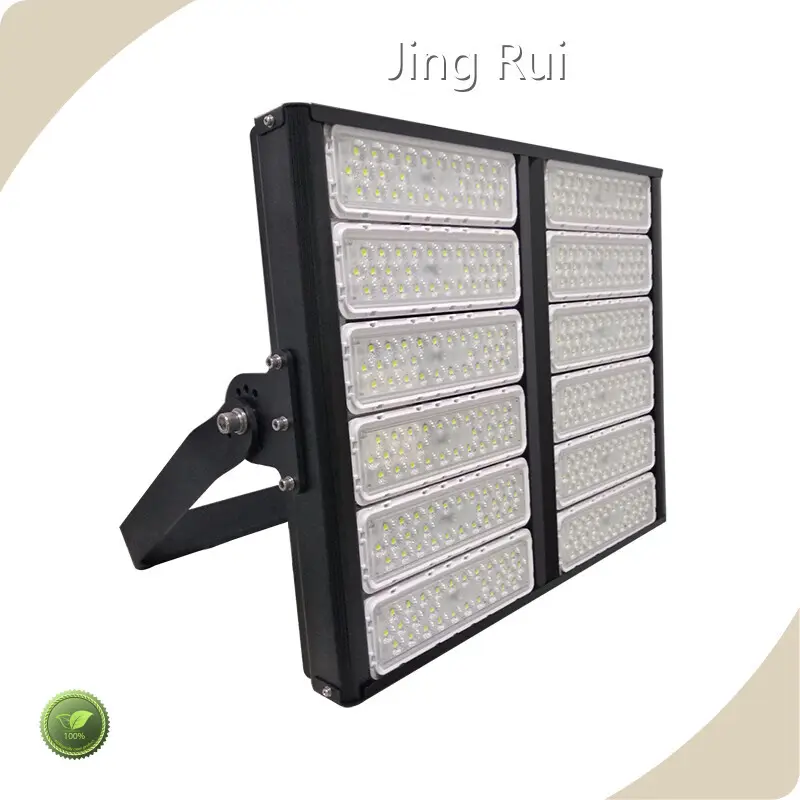

For Different Industries Outdoor Patio Lights by

Company Advantages

· Adopted from raw materials, outdoor patio lights is friendly in use.

· We fully make use of the cutting edge technology to achieve high-quality product.

· Under reasonable management, the service team of has been working orderly to provide the best service.

Our advantage

● Uses an independent light source and ZAG lens technology, compared with similar products, the light efficiency is increased by 8%, and light transmittance reaches 98%.

● Adopts air duct heat dissipation technology, overall weight is reduced and good heat dissipation performance, reduces luminous depreciation and prolongs the life of the light source.

● Adopts the mainstream CHEM modular design, effectively reduces maintenance costs for long service.

● Sturdy and durable, long working life, reaching 50,000 hours; does not need frequent light fixture changes, does not need regular maintenance.

● Quick response, flicker free, wide voltage working range.

● The LEDs use polycrystalline packaging, high luminous efficiency, stable performance, low luminous depreciation, no damage LED.

● Suitable for factories, industrial sites, sports fields, gas stations, parking lots, station halls, railway stations, ports installations and mobile light towers etc.

Product details

Imported light source and ZAG lens technology

Using imported light source and ZAG lens technology, compared with similar products, the light efficiency is increased by 8% and the light transmittance is as high as 98%.

Air duct heat dissipation technology

Using air duct heat dissipation technology, the overall weight of the product is reduced and the heat dissipation performance is good, which reduces light attenuation and extends the life of the light source.

IP68 protection level

The whole lamp has IP67 protection level, and the light source module reaches IP68 ultra-high protection level.

Freely expanded

Can be freely expanded, greatly increasing product adaptability.

A variety of lens options

A variety of lens options are available to meet the requirements of different application environments. The lenses are made of optical-grade PC material, providing uniform light without glare.

5MM thick high-strength steel bracket

It utilizes a 5MM thick high-strength steel bracket with a 240° projection angle design and a 304 stainless steel locknut for fixation.

Company Features

· Shanghai Jing Rui Lighting Co., Ltd. is a professional developer and manufacturer of outdoor patio lights. We have transcended most other competitors in the market.

· We have a modern factory that runs smoothly by complying with safety protocols. This means that our manufacturing workers are able to finish their products in an efficient and safe manner. Our factory has implemented the recognized Quality Management System. This allows us to get full traceability of our products and constantly monitor our manufacturing processes. We have employed a professional design team. Thanks to their abundant experience and expertise, they are able to ensure that our products are designed with fit, form, and function.

· Our constant and sincere efforts will always go to ensure high quality and on time delivery. The effective flow and cost awareness of each phase is critical to our success. These factors ensure that the right goods are ultimately suitable for each buyer's quantity - and are purchased at the best price. Check it!

Product Details

Based on the production concept of 'detail determines result, quality creates brand', our company strives for excellence in every detail of products.

Product Comparison

The outdoor patio lights mainly promoted by Jing Rui have been further improved in the past through the technical improvement, which is reflected in the following aspects.

Product parameters

Model

Power(W)

Module Qty

Light Efficiency

Voltage(V)

CRI(Ra)

Beam Angle

CCT(K)

Power Factor

N.W/G.W (KG)

Packing size (mm)

JR304-150W

150

170Lm/W

AC100-277V
DC24V
DC48V

≥70

25°
40°
60°
90°

3000~6000

-40℃~50℃

＞0.95

5.3/6.2

515×345×205

JR304-200W

200

180Lm/W

5.9/6.8

515×345×205

JR304-250W

250

170Lm/W

8.2/9.3

415×395×205

JR304-300W

300

170Lm/W

8.8/9.8

415×395×205

JR304-400W

400

180Lm/W

11.7/12.8

565×390×205

JR304-500W

500

180Lm/W

16.8/18.3

800×450×205

JR304-600W

600

170Lm/W

16.8/18.3

800×450×205

JR304-800W

800

160Lm/W

20.9/22.7

800×530×205

JR304-1000W

1000

160Lm/W

22.7/25

800×600×205

Note: Letter "W" in the model no. stands for AC voltage; "DT" stands for DC24V; "DF" stands for DC48V.

Product size

Size/Model	a	b	c
JR304-150W	360	284	135
JR304-200W	360	284	135
JR304-250W	360	391	135
JR304-300W	360	391	135
JR304-400W	360	541	135
JR304-500W	651	393	135
JR304-600W	651	466	135
JR304-800W	651	466	135
JR304-1000W	660	543	135

Product photometrics


Application Scenarios

For Different Industries Outdoor Patio Lights by 15

Light Tower

For Different Industries Outdoor Patio Lights by 16

Port Terminal

Stadium

High Pole Light

FAQ

What is the voltage range of your LED flood light?

We offer a voltage range of AC100~277V and DC12V/DC24V/DC48V.

How do your products compare to similar products in the market?

Our products are highly efficient, lightweight, anti-corrosive, and anti-shock performance.

What certifications have you obtained?

Our LED Lights are CSA, SAA, CE, and BIS-approved.

What’s the application for your LED flood Light?

Our LED flood lights are widely used at Diesel/Solar/Hybrid lighting towers, stadiums, Sports fields, Ports, Industrial places, Construction Sites, Docks, Mining Sites etc.

What’s the luminous efficiency of your LED Flood Light?

Our LED Flood light offers 150~200lm/w.

Do you offer a guarantee for the products?

Yes, We offer a 2-year warranty for DC LED lights and a 3-year warranty for DC LED lights.

Can your factory make the lights based on customers' designs?

Yes, we offer OEM and ODM service, we can design and produce according to the client's requests, and we have professional engineers for R&D.

Are you a factory or trading company?

We are a factory and trading company integration. our sales center and R&D department are located in Shanghai, and the factory is located in Suzhou City. We welcome customers to visit our factory.
