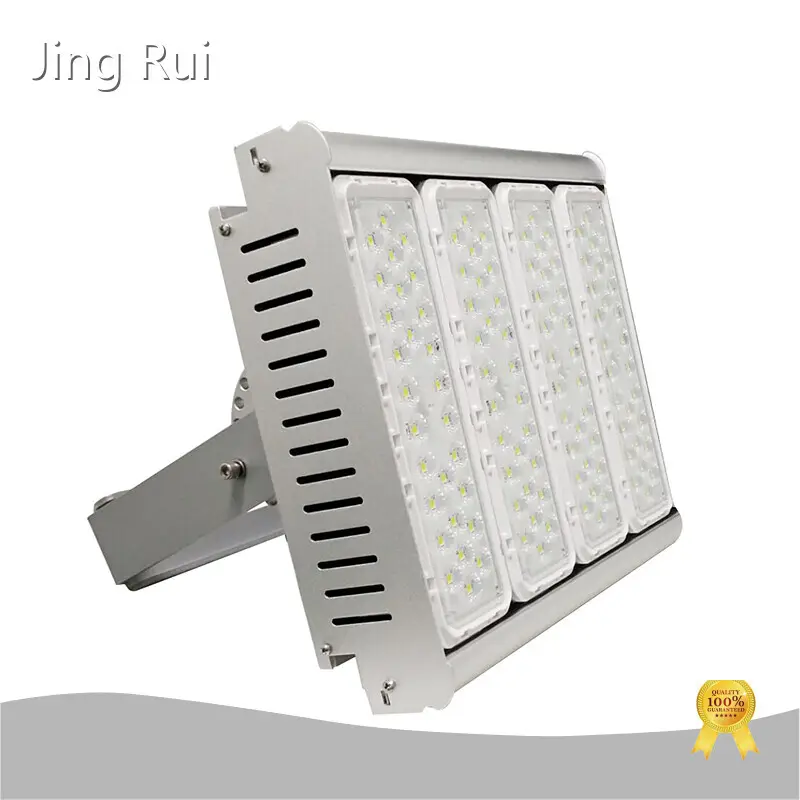

Our advantage
● Professional cooling structure technology, inside and outside air ducts design, high efficiency heat dissipation performance.
● IP67 protection level, LED module has IP68 protection level.
● A variety of lens options to meet different application requirements for light distribution, optical PC lens, uniform glare-free brightness.
● Freely assembled different numbers of modules for different power, highly adaptable functionality.
● All-metal structure, high mechanical strength.
● Suitable for factories, industrial sites, sports field, gas stations, parking lots, station halls, railway stations, ports installations and mobile light towers etc.
Product details
Company Advantages
· outdoor patio lights has met the industrial design requirements.
· A sound quality assurance better ensures the quality of this product.
· outdoor patio lights is conducive to the brand building of Shanghai Jing Rui Lighting Co., Ltd..
Company Features
· After years of development, Shanghai Jing Rui Lighting Co., Ltd. has become an expert. We have strengthed our advantages in R&D and manufacture of outdoor patio lights.
· The factory has brought in advanced production equipment to meet customers' requirements for different materials and specification. Besides, the professional testing equipment ensures the products with reliable quality.
· brand will further develop service quality. Get quote!
Application of the Product
The outdoor patio lights produced by Jing Rui is widely used in field for its excellent quality.
According to different needs of customers, Jing Rui is capable of providing reasonable, comprehensive and the most cost-effective solutions for customers.
Product parameters
Model | Power(W) | Module Qty | Light Efficiency | Voltage(V) | CRI(Ra) | Beam Angle | CCT(K) | Ta | Power Factor | N.W/G.W (KG) |
Packing size (mm) |
|
JR309-50W | 50 | 1 | 190Lm/W | AC100-277V DC24V DC48V |
≥70 | 25° 40° 60° 90° 110° |
3000~6000 | -40~50℃ | >0.95 | 2.7/3.2 | 395×210×200 | |
JR309-100W | 100 | 2 | 190Lm/W | 4.0/4.5 | 395×250×200 | |||||||
JR309-150W | 150 | 2 | 170Lm/W | 4.0/4.5 | 395×250×200 | |||||||
JR309-200W | 200 | 3 | 180Lm/W | 5.5/6.2 | 395×350×200 | |||||||
JR309-240W | 240 | 3 | 170Lm/W | 5.5/6.2 | 395×350×200 | |||||||
JR309-300W | 300 | 4 | 170Lm/W | 8.8/10.0 | 485×390×210 | |||||||
JR309-350W | 350 | 5 | 180Lm/W | 11.2/12.2 | 540×390×235 | |||||||
JR309-400W | 400 | 6 | 180Lm/W | 11.2/12.2 | 540×390×235 | |||||||
JR309-480W | 480 | 3 | 170Lm/W | 11.2/12.2 | 540×390×235 | |||||||
JR309-500W | 500 | 8 | 180Lm/W | 14.6/16.1 | 700×390×235 | |||||||
JR309-600W | 600 | 9 | 170Lm/W | 14.6/16.1 | 700×390×235 | |||||||
Note: Letter "W" in the model no. stands for AC voltage; "DT" stands for DC24V; "DF" stands for DC48V. |
Product size
Size/Model | a | b | c | d |
JR309-50W | 296 | 80 | 130 | 150 |
JR309-100W | 296 | 160 | 154 | 210 |
JR309-150W | 296 | 240 | 154 | 290 |
JR309-200W | 296 | 240 | 154 | 290 |
JR309-240W | 320 | 320 | 165 | 346 |
JR309-300W | 320 | 320 | 165 | 346 |
JR309-350W | 480 | 296 | 165 | 346 |
JR309-400W | 480 | 296 | 165 | 346 |
JR309-480W | 480 | 296 | 165 | 346 |
JR309-500W | 640 | 296 | 165 | 346 |
JR309-600W | 640 | 296 | 165 | 346 |
