Foldable Telescopic Lighting

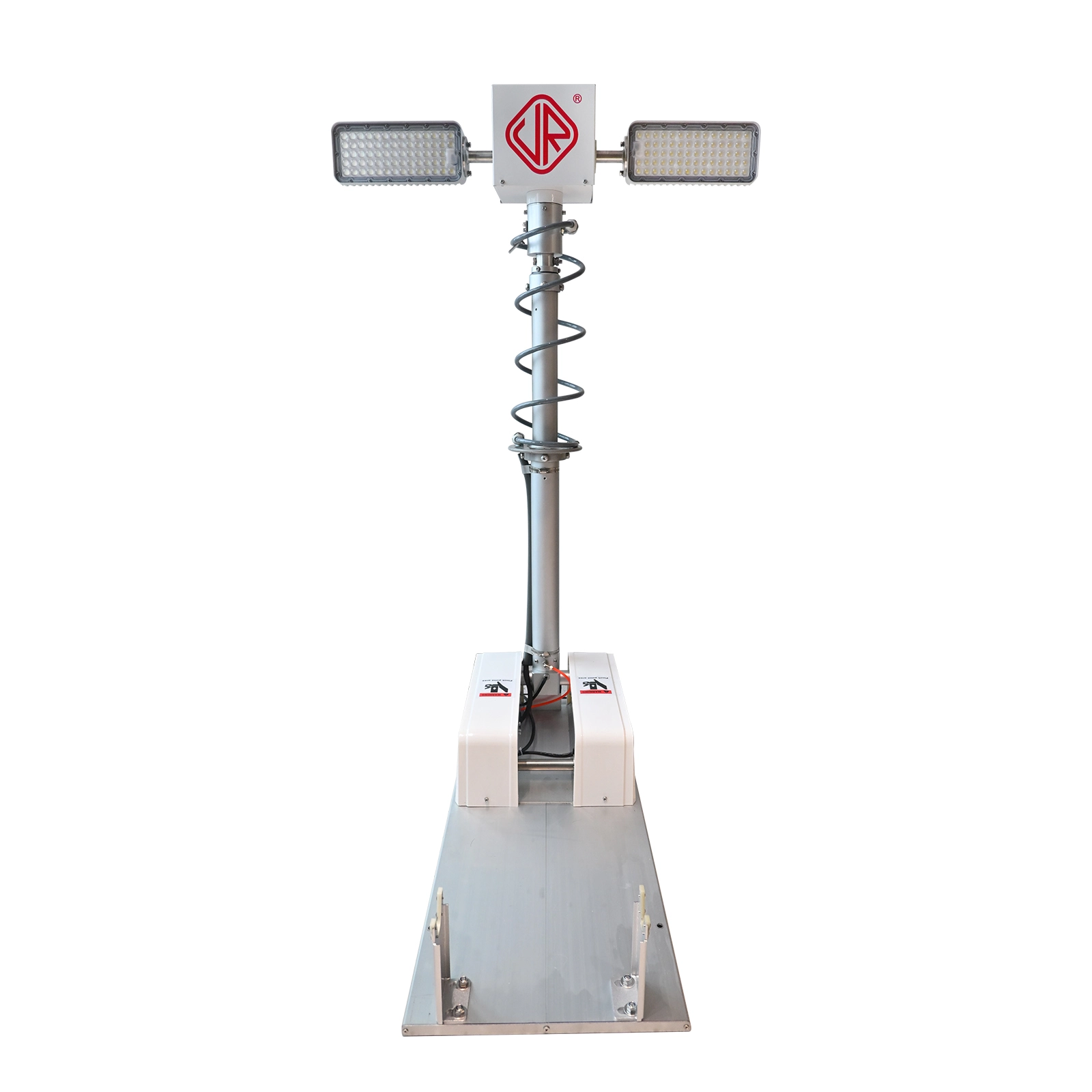

This 1.8-meter classic vehicle-mounted telescopic lighting device is suitable for installation on medium-sized special vehicles such as communication command vehicles, lighting vehicles rescue vehicles,and fire trucks.

It features raising, lowering, extending, and retracting functions, An electric actuator raises the telescopic pipe from 0 to 90 degrees, and an air pump extends the mastto 1.8 meters, expanding the illumination range. Once erected, a high-strength rotating platform enables 380 horizonta and 330 vertical rotation for fullrange positioning illumination. The operating voltage is directly supplied by the vehice battery. When high-power luminaries are equipped, a vehicle-mounted generator can be configured for power supply. The lighting head can use eithel LED or metal halide light sources, with power options ranging from 80w to 1000w.The controlle features an LED display that shows product status. The complete system features self-diagnostic functionality, in case a malfunction occurs in the lighting equipment, the corresponding faul point can be displaved on the controller.

Moreover, the device can be equipped with a video camera and protective shield on top, with ore-wired camera cables reserved for video recording.

• Height Adjustment: Equipped with three-section pneumatic lifting poles, the lamp assembly can be elevated to a height of 1.8 meters, effectively expanding the illumination coverage.
• LED Light Source: The lamp head adopts solid-state LED lighting, which features high luminous efficacy, low power consumption, long service life and excellent shock resistance.
