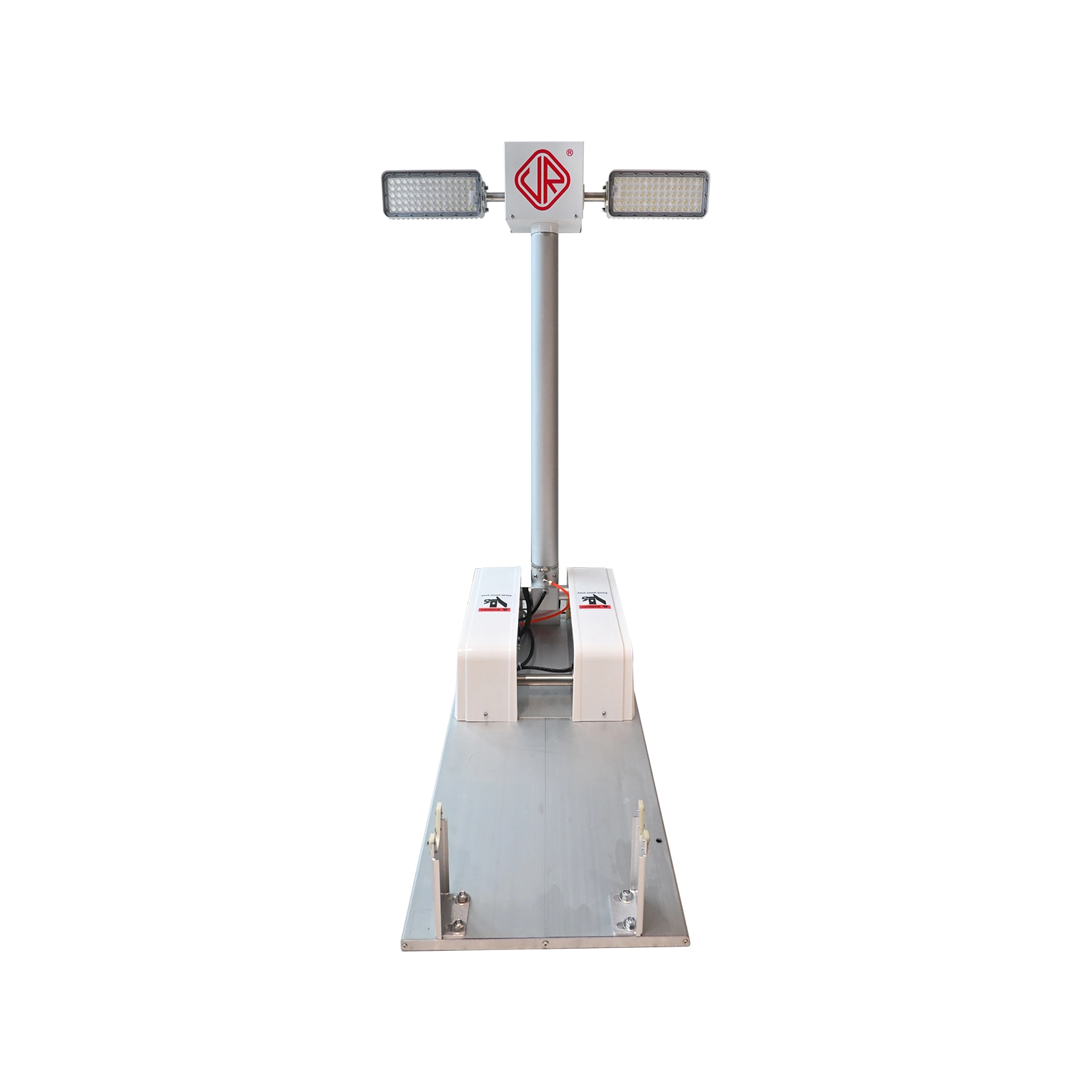

Service Truck Light Tower
- MODEL: Foldable Telescopic Lighting
- POWER: 120W*2 200W*2 400W*2 600W*2 1000W*2 80W*4 120W*4 200W*4 400W*4 600W*4 1000W*4
- Input Volt.: AC220V DC12V DC24V
- Number of Segments : 1
- Horizontal Rotation : 380°
- Vertical Rotation : 330°
Product Advantages
The 1.2-meter lightweight vehicle-mounted telescopic lighting device is suitable for installation on medium-sized special vehicles such as communication command vehicles, lighting vehicles, rescue vehicles, and fire trucks.
An electric actuator raises the telescopic mast from 0 to 90 degrees, and reaches a height of 1.2 meters to expand the illumination zone. Once erected, a high-strength rotating platform enables 380°horizontal and 330°vertical rotation for full-range positioning and illumination. The operating voltage is directly supplied by the vehicle battery. When high-power luminaries are equipped, a vehicle-mounted generator can be configured for power supply. The lighting head can use either LED or metal halide light sources, with power options ranging from 80W to 1000W. The controller features an LCD display that shows product status. The complete system features self-diagnostic functionality, in case a malfunction occurs in the lighting equipment, the corresponding fault point can be displayed on the controller.
Moreover, the device can be equipped with a video camera and protective shield on top, with pre-wired camera cables reserved for video recording.
Product details
- The lamp assembly can be elevated to a height of 1.2 meters, effectively expanding the illumination coverage.
- LED Light Source: The lamp head adopts solid-state LED lighting, which features high luminous efficacy, low power consumption, long service life and excellent shock resistance.
