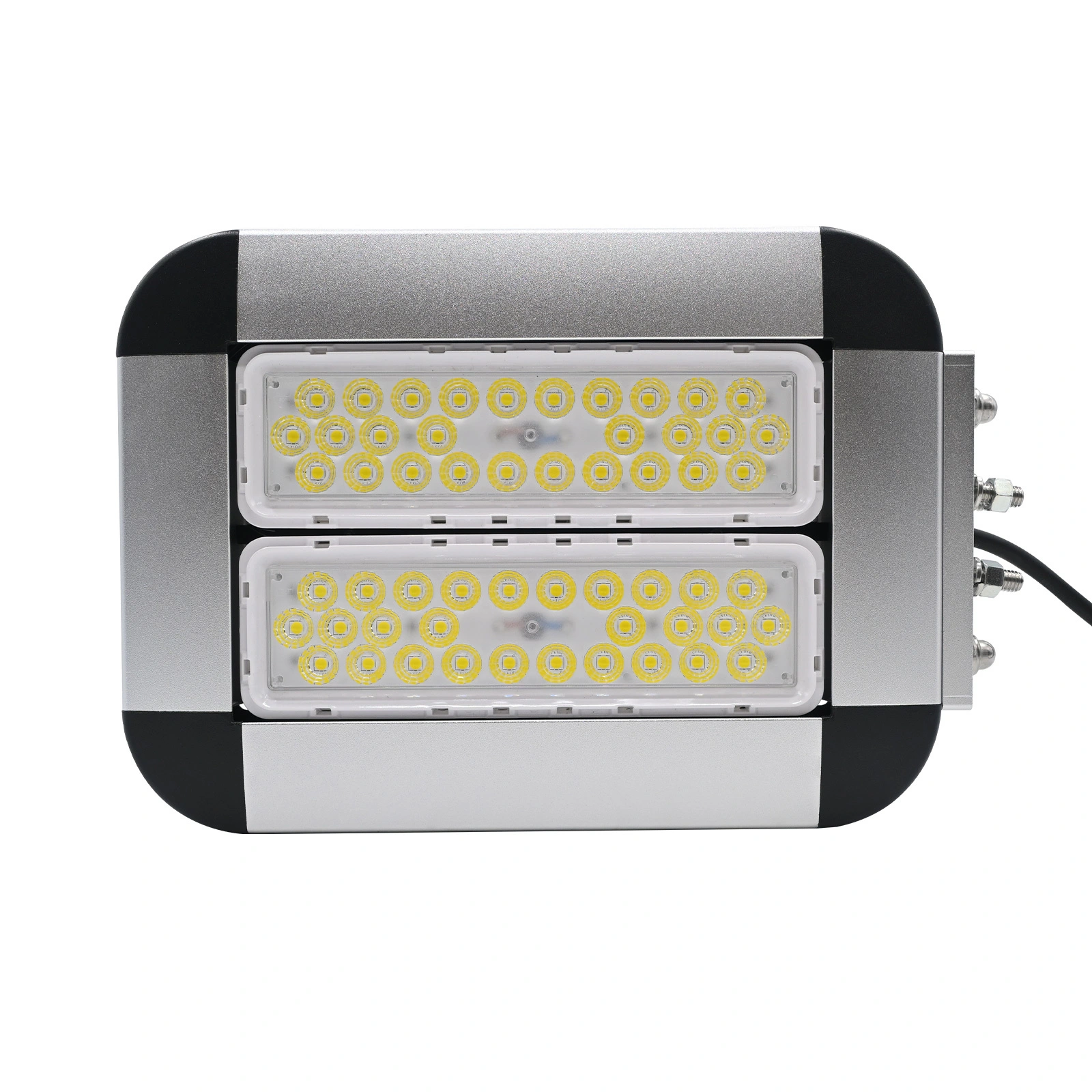

Waterproof Fire Truck LED Scene Light
- MODEL: JR604
- POWER: 150W 200W 300W 500W
- Input Volt.: AC100-277V DC24V DC48V
- Light effect: 170/180Lm/W
- Beam Angle: 25° 40° 60° 90°
- Color temperature: 3000-5700K
- LED TYPE: SMD5050
- CERTIFICATION: CE/ROHS/IP67/IK09/ISO9001/ISO14001
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Our advantage
- Professional heat dissipation structure, full-structure heat dissipation technology, with an internal and external transparent air duct design, achieving high-efficiency heat dissipation performance.
- Variety of lens option scan meet the light distribution requirements of diferent application envionments, optical grade PC material lens has uniform light output and no glare.
- Freely assembled different numbers of modules for different power highly adaptable functionality.
- A variety of installation options suitable for a variety of different installation environment.
- Global wide voltage operation, conform to various general standards, easy to replace directly.
- Durable, long service life, up to 50000 hours, no need to change light fixture frequently.
- Suitable used for industrial place, stadium, parking lots, port & pier, mobile light tower, mines, coal plants, fire emergency & rescue lighting and other related areas.
Product details
Three installation options are available
Side Panel Mount/Adjustable Bracket Mount/Side Pivot Mount
Rofessional heat radiation structure
Professional heat radiation structure, full structure cooling technology, internal and external transparent air duct design, efficient cooling performance.
Modular design
Modular design allows for easy maintenance and meets varying power needs, reducing maintenance costs.
Product parameters
| Model | Power(W) | Light Efficiency | Voltage(V) | CRI(Ra) | Beam Angle | CCT(K) | Ta | Power Factor |
N.W. (KG) |
Packing size (mm) | |
| JR604-150 | 150W | 170Lm/W |
AC100-277V DC24V DC48V |
≥70 | 25° 40° 60° 90° |
3000~5700 | -40℃~50℃ | ＞0.95 | 5.5 | 341×249×116 | |
| JR604-200 | 200W | 180Lm/W | 7.5 | 341×326×116 | |||||||
| JR604-300 | 300W | 170Lm/W | 9.5 | 341×403×116 | |||||||
| JR604-500 | 500W | 170Lm/W | 11.5 | 341×563×116 | |||||||
| Note: Letter "W" in the model no. stands for AC voltage; "DT" stands for DC24V;"DF" stands for DC48V. | |||||||||||
Product size
| Model/Size | a(mm) |
b(mm) |
c(mm) | |
| JR604-150 | 341 | 249 | 116 | |
| JR604-200 | 341 | 326 | 116 | |
| JR604-300 | 341 | 403 | 116 | |
| JR604-500 | 341 | 563 | 116 | |
Product photometrics
25
40 (2)
60 (4)
90 (4)
Application Scenarios
应用场景
FAQ
1
What is the voltage range of your LED flood light?
We offer a voltage range of AC100~277V and DC12V/DC24V/DC48V.
2
How do your products compare to similar products in the market?
Our products are highly efficient, lightweight, anti-corrosive, and anti-shock performance.
3
What certifications have you obtained?
Our LED Lights are CSA, SAA, CE, and BIS-approved.
4
What’s the application for your LED flood Light?
Our LED flood lights are widely used at Diesel/Solar/Hybrid lighting towers, stadiums, Sports fields, Ports, Industrial places, Construction Sites, Docks, Mining Sites etc.
5
What’s the luminous efficiency of your LED Flood Light?
Our LED Flood light offers 150~200lm/w.
6
Do you offer a guarantee for the products?
Yes, We offer a 2-year warranty for DC LED lights and a 3-year warranty for DC LED lights.
7
Can your factory make the lights based on customers' designs?
Yes, we offer OEM and ODM service, we can design and produce according to the client's requests, and we have professional engineers for R&D.
8
Are you a factory or trading company?
We are a factory and trading company integration. our sales center and R&D department are located in Shanghai, and the factory is located in Suzhou City. We welcome customers to visit our factory.
