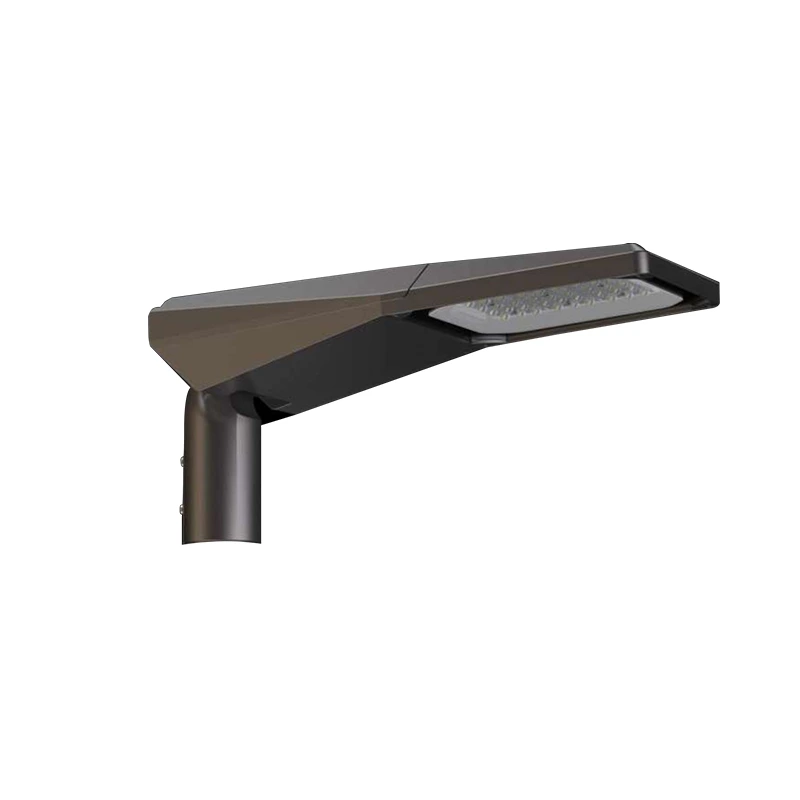

LED Battery Power High Mast Street Led Lamp SL06
● Mounting brackets can be mounted vertically or horizontally.
● The lamp housing is made of high purity die-cast aluminum, which is efficient in heat dissipation.
● Optical module with brand Led, high luminous efficiency.
● Using efficient optical lens, a variety of light distribution Angle can be selected.
● Use the impact hardened glass protector Ik08.
● The electrical chamber can be opened and closed without tools for easy installation and maintenance.
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Our Advantage
● Mounting brackets can be mounted vertically or horizontally.
● The lamp housing is made of high purity die-cast aluminum, which is efficient in heat dissipation.
● Optical module with brand Led, high luminous efficiency
● Using efficient optical lens, a variety of light distribution Angle can be selected.
● Use the impact hardened glass protector Ik08.
● The electrical chamber can be opened and closed without tools for easy installation and maintenance.
Product Parameters
| Model | Power(W) | Light Efficiency | Voltage(V) | CRI(Ra) | Power Factor | CCT(K) | EnvironmentTemperature | N.W(KG)/ | Packing size(mm) |
| G.W(KG) | |||||||||
| SL06-30W | 30 | 130Lm/W/ 160Lm/W |
AC100-277V DC24V |
＞70 | ＞0.95 | 3000~6000 | -40℃~50℃ | 3.2/4.2 | 605×236×120 |
| SL06-40W | 40 | 3.2/4.2 | 605×236×120 | ||||||
| SL06-50W | 50 | 3.2/4.2 | 605×236×120 | ||||||
| SL06-60W | 60 | 3.2/4.2 | 605×236×120 | ||||||
| SL06-80W | 80 | 4.2/5.2 | 670×275×120 | ||||||
| SL06-100W | 100 | 4.2/5.2 | 670×275×120 | ||||||
| SL06-120W | 120 | 4.2/5.2 | 670×275×120 | ||||||
| SL06-150W | 150 | 5.2/6.2 | 735×325×124 | ||||||
| SL06-180W | 180 | 5.2/6.2 | 735×325×124 | ||||||
| SL06-200W | 200 | 5.2/6.2 | 735×325×124 |
Product Size
| Size/Model | a | b | c |
| SL06-(30~60W) | 586 | 216 | 98 |
| SL06-(80~120W) | 646 | 255 | 100 |
| SL06-(150~200W) | 716 | 305 | 104 |
Product Details
Application Scenarios
Street Light
Street Light
FAQ
1
Why should you choose solar LED street lights?
Solar LED street lights have several advantages, including energy-saving, environmental friendliness, easy installation, and maintenance-free operation.
2
How do you choose solar LED street lights?
When selecting solar LED street lights, we consider the following factors: 1. The height of the pole; 2. The required working time of the solar street light each night; 3. The proportion of rainy and cloudy days in the installation location.
3
Can I place a sample order for the solar LED street light?
Certainly, you can place a sample order to test the quality of the solar street light. However, please note that the price of the sample may differ from that of a large quantity order.
4
How long can solar power be stored?
The integrated solar street light can store solar power for up to 6 months after the batteries are fully charged. It is recommended to periodically examine and charge the batteries after long periods of transportation to prevent damage.
5
How do I choose the system voltage? 12V or 24V for normal street lights?
We can design the system for either 12V or 24V for solar street lights, or 100-277V for normal street lights.
6
What should be considered during installation?
During installation, please ensure that the surface of the solar panel is exposed to direct sunlight. Additionally, keep the solar panel away from any obstructions such as buildings or trees that may cast shadows.
7
How is the luminance of the solar street light controlled?
Our solar street lights utilize microwave sensor control and brightness sub-regulation. The brightness sub-regulation allows for the adjustment of brightness based on the time of day. For example, from 6:00 p.m. to 12:00 p.m., the brightness is set at 100%, while from 0:00 a.m. to 06:00 a.m., it is set at 20% or 30%. This feature allows our product to replace conventional LED street lights.
8
What is the recommended mounting height?
We recommend a mounting height of 3-5m for solar street lights with a power rating of 20W, 30W, and 40W, and a mounting height of 6-8m for solar street lights with a power rating of 50W, 60W, and 80W.
9
What is the recommended distance?
For the recommended distance, we suggest 10-15m for solar street lights with a power rating of 20W, 30W, and 40W, and 20-25m for solar street lights with a power rating of 50W, 60W, and 80W.
