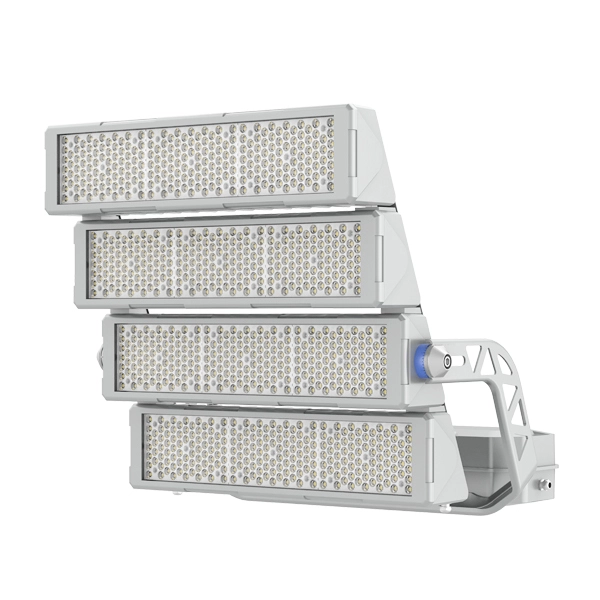

LED Battery Stadium Of Lights JR 508
- MODEL: JR508
- POWER: 400W 500W 600W 800W 1000W 1200W 1500W 1800W 2000W 2400W
- Input Volt.: AC100-277V 50/60Hz
- Light effect: 150Lm/W
- Beam Angle: 10° 15° 25° 45° 60° 90° Asymmetrical 60°
- Color temperature: 3000-6500K
- LED TYPE: SMD 3030
- CERTIFICATION: UL/ETL/DLC/TUV/CB/ENEC/CE/SAA/FCC/RoHS/CQC
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Our advantage
● Imported Lumileds/OSRAM light source, high brightness, low light decay, long life.
● Driven by international first-line brands, with over-temperature protection, high conversion efficiency, high power factor, high lightning protection and other characteristics (1-10V,DALI2.0).
● 4mm high strength tempered glass, further reduces the UV and anti-rust, typically designed for coastal areas.
● ADC12 Aluminum Die-casting Fixture Housing,Corrosion resistant treatment, Anti-rust, excellent thermal management, and long lifes-pan.
● Using optical PC lens, IK08 anti-collision grade, anti-UV, transmittance of 94%, professional optical light distribution: 10°, 25°, 45°, 60°, 90°, Professional asymmetrical 60°.
● Bracket Installation, operation temperature: -35℃- +50℃.
Product parameters
| Model | Power(W) | Light Efficiency | Qty of LED | Voltage(V) | CRI(Ra) | Beam Angle | CCT(K) | THD | IK Rating | Power Factor | Driver Brand | N.W/G.W (KG) | Packing size (mm) | |
| JR508-400W | 400 | 150Lm/W | 714PCS*3030 120PCS*3737 | AC100 -277V 50/60Hz |
>70,80,90 | 10° 25° 45° 60° 90° Asymmetrical 60° |
3000~6500 | <10% | Ik08 | ＞0.95 | MW/SOSEN/ INVENTRONICS | 16.55/19.55 | 805×320×260 | |
| JR508-500W | 500 | 150Lm/W | 714PCS*3030 120PCS*3737 |
16.55/19.55 | 805×320×260 | |||||||||
| JR508-600W | 600 | 150Lm/W | 714PCS*3030 120PCS*3737 |
16.55/19.55 | 805×320×260 | |||||||||
| JR508-800W | 800 | 150Lm/W | 1428PCS*3030 240PCS*3737 |
30.50/34.50 | 805×320×260 | |||||||||
| JR508-1000W | 1000 | 150Lm/W | 1428PCS*3030 240PCS*3737 |
30.50/34.50 | 805×320×260 | |||||||||
| JR508-1200W | 1200 | 150Lm/W | 1428PCS*3030 240PCS*3737 |
30.50/34.50 | 805×320×260 | |||||||||
| JR508-1500W | 1500 | 150Lm/W | 2142PCS*3030 360PCS*3737 |
43.70/48.70 | 805×565×577 | |||||||||
| JR508-1800W | 1800 | 150Lm/W | 2142PCS*3030 360PCS*3737 |
43.70/48.70 | 805×565×577 | |||||||||
| JR508-2000W | 2000 | 150Lm/W | 2856PCS*3030 480PCS*3737 |
57.80/63.80 | 805×643×747 | |||||||||
| JR508-2400W | 2400 | 150Lm/W | 2856PCS*3030 480PCS*3737 |
57.80/63.80 | 805×643×747 | |||||||||
| Note: Letter "W" in the model no. stands for AC voltage; "DT" stands for DC24V; "DF" stands for DC48V. | ||||||||||||||
Product size
Photometrics
Application Scenario
Stadium
Port Terminal
Stadium
High Pole Light
FAQ
1
What is the voltage range of your LED flood light?
We offer a voltage range of AC100~277V and DC12V/DC24V/DC48V.
2
How do your products compare to similar products in the market?
Our products are highly efficient, lightweight, anti-corrosive, and anti-shock performance.
3
What certifications have you obtained?
Our LED Lights are CSA, SAA, CE, and BIS-approved.
4
What’s the application for your LED flood Light?
Our LED flood lights are widely used at Diesel/Solar/Hybrid lighting towers, stadiums, Sports fields, Ports, Industrial places, Construction Sites, Docks, Mining Sites etc.
5
What’s the luminous efficiency of your LED Flood Light?
Our LED Flood light offers 150~200lm/w.
6
Do you offer a guarantee for the products?
Yes，We offer a 2-year warranty for DC LED lights and a 3-year warranty for AC LED lights(If the generator is used for power generation, the warranty period is 3 years; if used with grid power, the warranty period is 5 years).
7
Can your factory make the lights based on customers' designs?
Yes, we offer OEM and ODM service, we can design and produce according to the client's requests, and we have professional engineers for R&D.
8
Are you a factory or trading company?
We are a factory and trading company integration. our sales center and R&D department are located in Shanghai, and the factory is located in Suzhou City. We welcome customers to visit our factory.
