10+years Professional industrial lighting manufacturer, committed to provide high quality lighting products and systematic lighting solutions for global customers

High Quality Hot Selling All In One Solar Street Light System 1

High Quality Hot Selling All In One Solar Street Light System 2

High Quality Hot Selling All In One Solar Street Light System 3

High Quality Hot Selling All In One Solar Street Light System 4

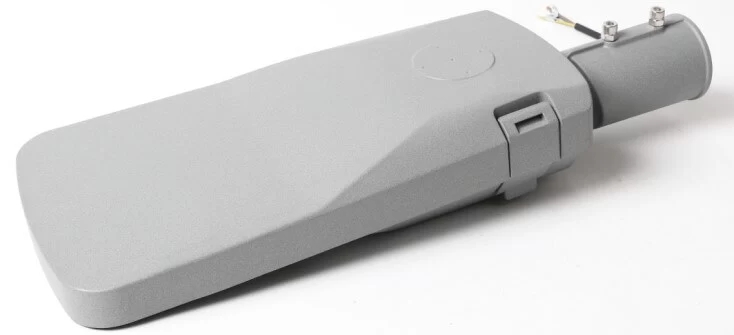

High Quality Hot Selling All In One Solar Street Light System

● Light source: LED.

● Solar panel: Monocrystalline or polycrystalline.

● Storage battery:Solar Lithium battery.

● Controller: time control and light control,preventing from overcharge and overdischarge, having output short circuit protection.

Inquiry

Write a Review

Our advantage

● Light source: LED.

● Solar panel: Monocrystalline or polycrystalline.

● Storage battery:Solar Lithium battery.

● Controller: time control and light control,preventing from overcharge and overdischarge, having output short circuit protection.

Product parameters

Solar led street lightsystem model	SSL2120	SSL2130	SSL2140	SSL2150
Power	20W	30W	40W	50W
Size	L577W232.6H103.2mm
Lumen Output	3000-3500lm	4000-4800lm	6000-7000lm	8000-9200lm
Lumen/Watt	160 Lm/W
LED Chip	High Lumen Philips LED chip
CCT	3000 - 6500K
CRI	>70
Body	Aluminium Alloy+PC Lens+toughened glass
Elevation angle	Variable Vertical/Horizontal Mounting
IP Rating	IP65
Life span(H)	50,000
Battery
Type	Lithium
Capacity	176WH	270WH	320WH	400WH
Battery size	20514198mm	28514198mm	28514198mm	44514198mm
Cycle	2000 times
Temperature resistance	75℃
Solar panel
Power	50W/18V	60W/18V	70W/18V	80W / 18V
Size	67054025MM	67060025MM	67065025MM	67077025MM
Material	High-efficiency Monocrystalline
Efficiency	20%
System
Controllers	Intelligent Controller Microwave Sensor 95-98% efficiency
Lighting time	2~3 Rainy days/50-60 Hours
Operation temperature	-30°C ~ 50°C
Smart remote controller
*Optional Custom Functions	Contact our sales team
Installation
Mounting height	5-10metre
Installation Spacing	10-20metre
Warranty	1Years

Application Scenarios

Street Light

FAQ

Why should you choose solar LED street lights?

Solar LED street lights have several advantages, including energy-saving, environmental friendliness, easy installation, and maintenance-free operation.

How do you choose solar LED street lights?

When selecting solar LED street lights, we consider the following factors: 1. The height of the pole; 2. The required working time of the solar street light each night; 3. The proportion of rainy and cloudy days in the installation location.

Can I place a sample order for the solar LED street light?

Certainly, you can place a sample order to test the quality of the solar street light. However, please note that the price of the sample may differ from that of a large quantity order.

How long can solar power be stored?

The integrated solar street light can store solar power for up to 6 months after the batteries are fully charged. It is recommended to periodically examine and charge the batteries after long periods of transportation to prevent damage.

How do I choose the system voltage? 12V or 24V for normal street lights?

We can design the system for either 12V or 24V for solar street lights, or 100-277V for normal street lights.

What should be considered during installation?

During installation, please ensure that the surface of the solar panel is exposed to direct sunlight. Additionally, keep the solar panel away from any obstructions such as buildings or trees that may cast shadows.

How is the luminance of the solar street light controlled?

Our solar street lights utilize microwave sensor control and brightness sub-regulation. The brightness sub-regulation allows for the adjustment of brightness based on the time of day. For example, from 6:00 p.m. to 12:00 p.m., the brightness is set at 100%, while from 0:00 a.m. to 06:00 a.m., it is set at 20% or 30%. This feature allows our product to replace conventional LED street lights.

What is the recommended mounting height?

We recommend a mounting height of 3-5m for solar street lights with a power rating of 20W, 30W, and 40W, and a mounting height of 6-8m for solar street lights with a power rating of 50W, 60W, and 80W.

What is the recommended distance?

For the recommended distance, we suggest 10-15m for solar street lights with a power rating of 20W, 30W, and 40W, and 20-25m for solar street lights with a power rating of 50W, 60W, and 80W.
